Pneumatic Gear Motor

Geared Air Motor

Air motors itself usually can be operated at high speeds, and can be controlled in a wide range, but the output data are not always suitable for all the applications. So in order to achieve the needed output performance, it is necessary to choose a gear unit with right ratio.

Air motor output performance is very much related to inlet pressure. Under constant inlet pressure, Stable air motors show a linear output torque/speed characteristic.

When selecting an air motor, the first step is to establish a "best performance point". This is a point described by the speed at which the air gear motor has required torque at that speed. Since it is most efficient to operate an air motor at speed at its maximum output, so you should choose the motor that produces the most power closest to the point.

Notice: DSV pneumatic gear motors do not self-lock, if your application needs a brake for safety reasons or special application, please contact us.

AUTO BRAKES

For applications requiring effective braking, a range of air driven automatic brakes is available.

This kind of brake consists of two springs connected to the hoop which pressed against a central hub. When air pressure enters the brake chamber, the brake hoop opens. The braking torque can be changed by adjusting the two spring regulators, but it is usually set to 4 bar (60 PSI) of air pressure to fully open the brake.

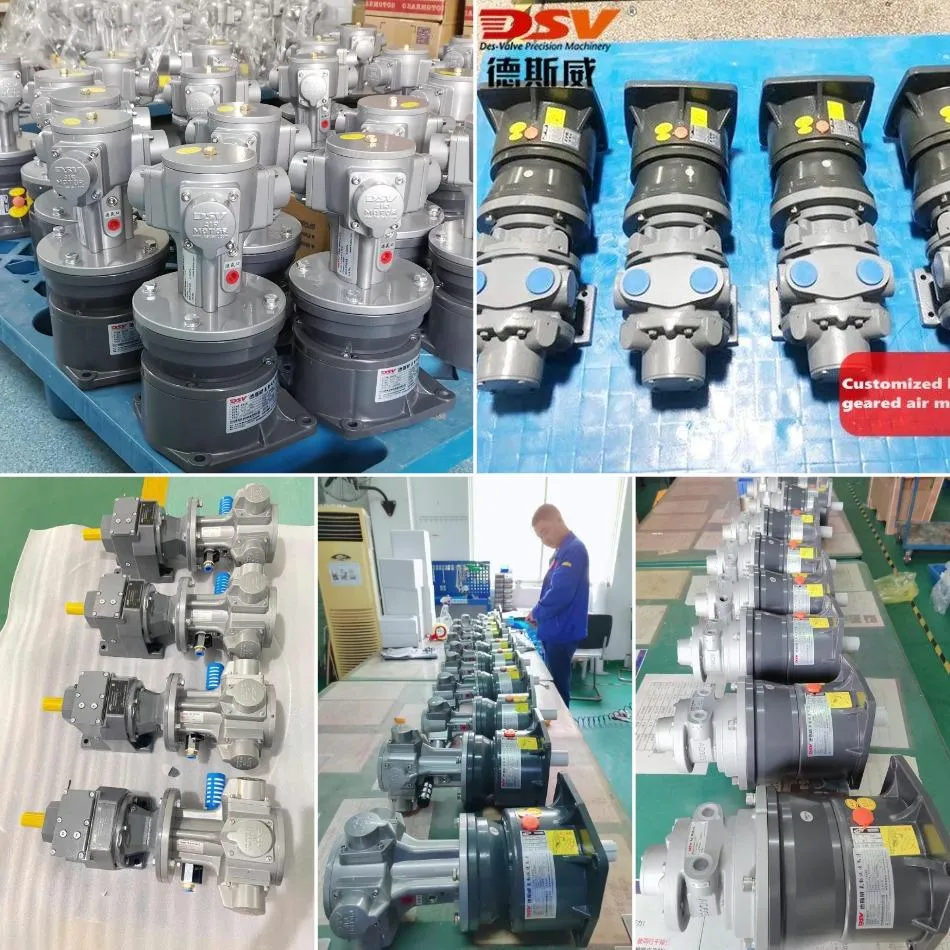

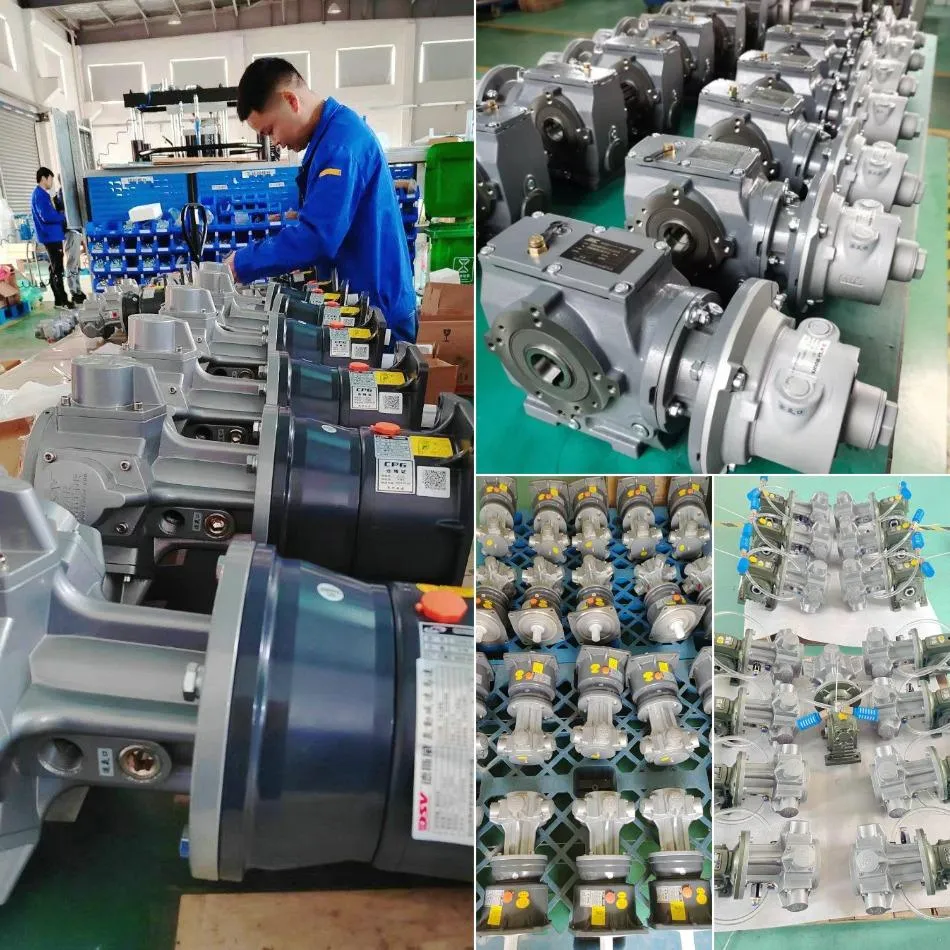

Piston air motor with helical gear reducer

DSV helical gear reduction air motor

The reducer product features:

Simple installation, flexible and light, superior performance, easy maintenance and repair.

With small size, light weight, large transmission torque, smooth start, short delivery time, perfect after-sales service.

Air motor power: 1/8HP - 1.5HP optional.

Reduction ratio: 3, 5, 10, 15...200 optional.

Vane air motor with gear reducer

DSV gear reduction air motor using Taiwan brand CPG gear reducer.

The reducer product adopts advanced design ideas, high-strength aluminum material, precision gear hobbing processing, grade 1-2 gear accuracy, with quenched-tempered heat treatment and thick gear size, has good carrying capacity, low noise, long life, maintenance free, stock supply.

Air motor power: 0.93 HP - 9.5 HP optional

Reduction ratio: 1:3-1:5-1:200 (single stage) 1:250-1:800 (double stage)

Piston air motor with CPG gear reducer

DSV gear reduction air motor using CPG gear reducer.

The reducer product features: small size, light weight, no noise, maintenance free.

Products have passed CE certification, ISO9001:2000 quality system certification.

Features: Aluminum alloy shell, bevel gear precision grinding, unique waterproof and moisture-proof design, IP55 protection grade, low noise, long life, maintenance-free, short delivery time, perfect after-sales service.

Model TYPES: CH, CV, CHM, CVM, CHD, CVD

Air motor power: 1/8HP - 1.5HP optional

Gear ratio: 3, 5, 10, 15...200 optional

Small size, Light weight, Low noise

Multiple installation methods, any plane installation

Explosion-proof, Stall Safe, Durable Design

Positive Starting, High Starting Torque, High Torque output

Modular Design: All motors can be equipped with gear reducer, brake, hand control valve, as options.

Wide range of use, paint industry, chemical industry, cosmetics industry, textile industry, paper industry, mechanical transmission industry, etc

Recommended maximum air supply pressure is 7bar.
