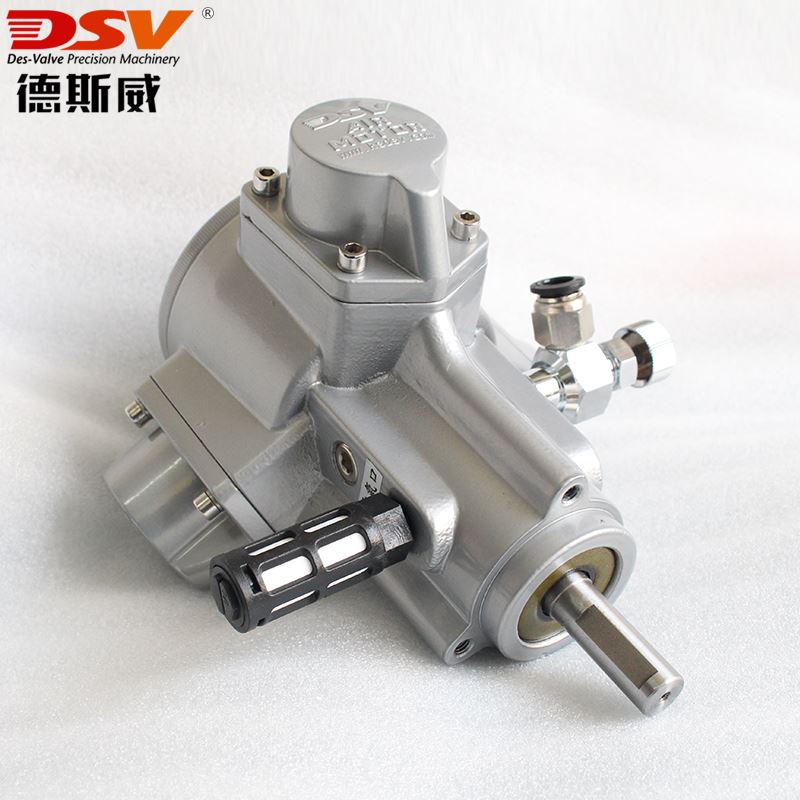

Explosion-proof Pneumatic Motor DAM2

Notes：

• 1HP=0.735KW

• The above specifications for piston air motors are for performance at ambient temperature of 20°C. The viscosity of the grease inside air motor housing will change if surrounding temperature decreases, the speed will also decrease.

• The performance specifications of the pneumatic motors refers to the value when the exhaust side pressure is normal atmospheric.

1. The housing is made of aluminum alloy with a solvent-resistant spray coating process.

2. The motor main shaft is forged from 40Cr steel as a single piece, providing strong wear resistance.

3. The motor output shaft is carburized to prevent rust.

4. The motor output shaft is equipped with bearing oil seals to prevent leakage.

5. The motor features an eccentric wheel design at the top to increase torque.

6. It comes with an Explosion-Proof Certification.

Working fluid: compressed air

Standard operating pressure: 6 kg /cm2 (85 PSI)

Maximum operating pressure: 8 kg /cm2 (115 PSI)

Ambient temperature: -10 ~ +70°C

When air motor is working, it is necessary to install an air filter & lubricator for optimal efficiency and extended service life.
