Specifications
|
Model |
Gear Ratio |
Data at max power |
Data at max torque |
|||||
|
Power |
Torque |
Speed |
Air Consumption |
Torque |
Speed |
|||
|
HP |
kW |
Nm |
rpm |
m³/min |
Nm |
rpm |
||
|
DAV1 |
1:1 |
0.45 |
0.33 |
0.31 |
10000 |
0.59 |
0.65 |
650 |
|
DAV2 |
1:1 |
0.93 |
0.69 |
2.2 |
3000 |
0.85 |
3.05 |
350 |
|
DAV4 |
1:1 |
1.71 |
1.3 |
4.1 |
3000 |
2.2 |
6.3 |
300 |
|
DAV6 |
1:1 |
4 |
3 |
10 |
3000 |
3.8 |
13 |
300 |
|
DAV8 |
1:1 |
5.2 |
3.9 |
14.4 |
2500 |
4.88 |
21 |
300 |
|
DAV16 |
1:1 |
9.5 |
7.08 |
34 |
2000 |
7.9 |
43 |
300 |

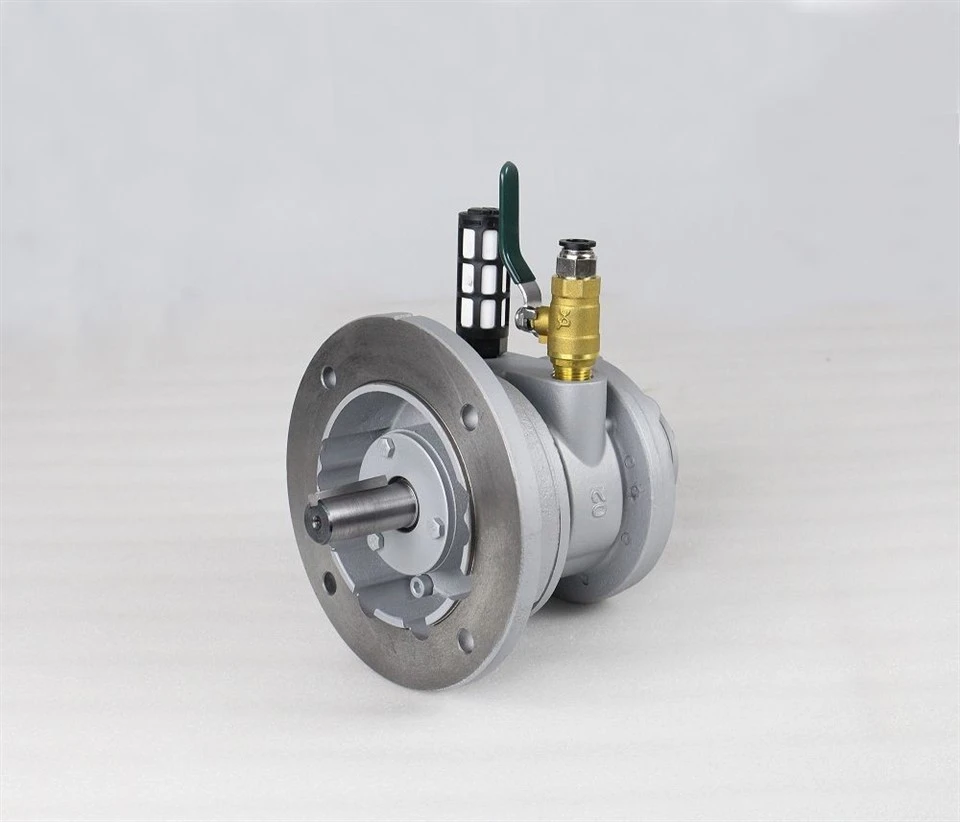

DSV vane air motors are well known for their durability and reliability in many domestic industries.
Its pneumatic air motors and air gear motors can be used in many different applications.
Power:3kw~3.9kw.
Speed range: 0~3000rpm.
Mounting type: Face,foot,Nema flange,IEC flange,Hub.
Rotation options: CW,CCW and Reversible.
Spare parts options: Mufflers,FRL(filter,regulator,lubricator),Needle or ball type flow control valve, Hand-control change valve,Especially all kinds of gear reducers and pneumatic auto brake.
Features
1.DSV air motors starts smoothly.
2.Compact structure and light weight.
3.Explosion proof,No electricity or magnetism,no spark.
4.Can be started with load,overload operation does not damage air motors.
5.Installation type is flexible,can be installed in any direction.
6.Environment friendly, compressed air works as power source, no pollution
7.High rotational speed and good power-to-weight ratio.
8.Inherently variable speed through airflow/pressure regulation.
Widely used images for DSV rotary vane air motors products
